3M Scotchcast Resin 2123D 电缆修补胶

3M Scotchcast Resin 2123D 电缆修补胶

3M Scotchcast 2131-D Resin

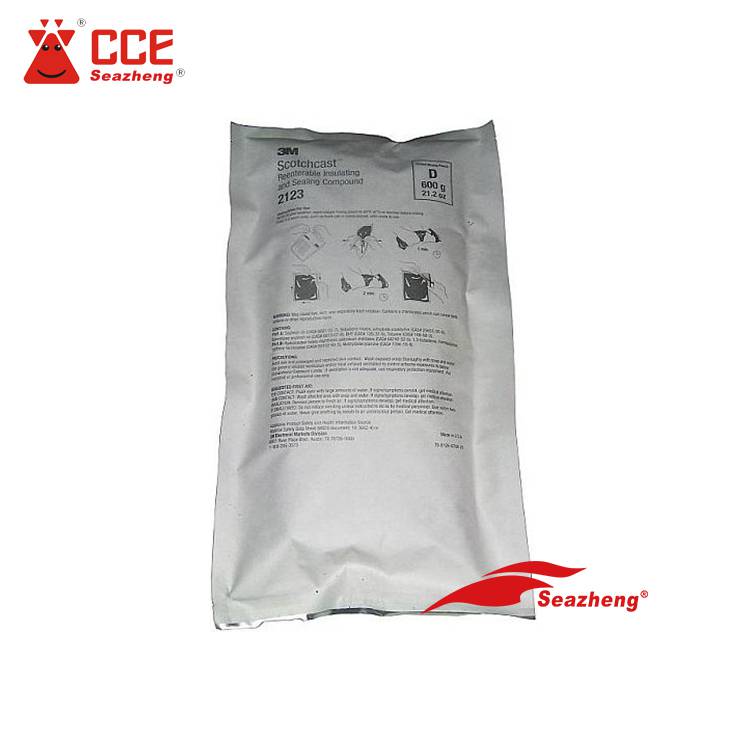

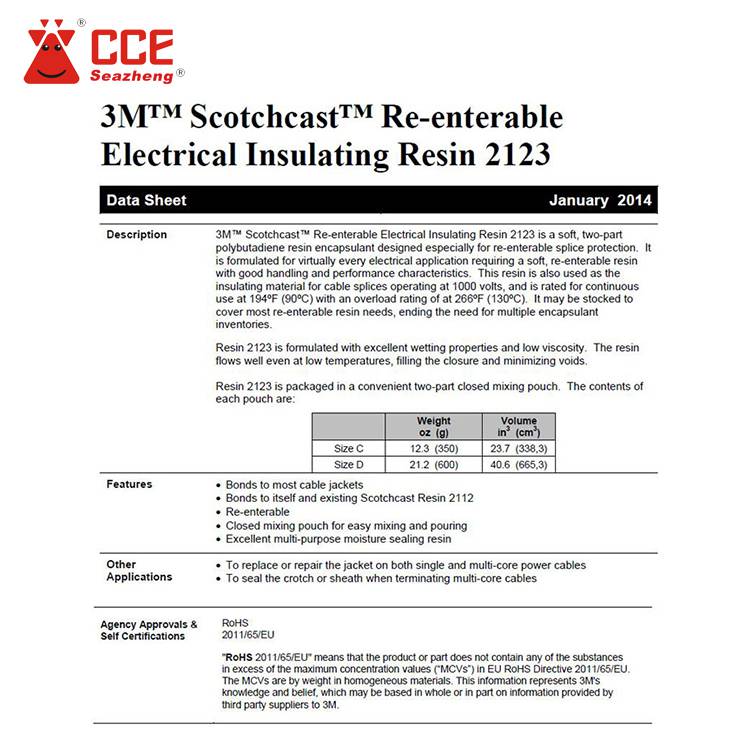

There’s a new 3M product for protecting electrical connections from water. 3M™ Scotchcast™ Re-enterable Electrical Insulating Resin 2123 is a polybutadiene resin that is mixed in its own two-part bag to easily and reliably insulate and seal electrical connections from water.

3M Scotchcast Re-enterable Electrical Insulating Resin 2123 is formulated for electrical applications requiring a soft and re-enterable encapsulant with good handling and performance characteristics. The new resin 2123 can be used in many existing applications because it will adhere not only to itself but also to discontinued

3M Scotchcast Re-enterable Electrical Insulating

Resin 2112, which it replaces.

Resin 2123 is excellent for applications with constant exposure to water, including potting flush-mounted junction boxes. It is softer and easier to re-enter than resin 2112 with a low viscosity that flows well at low temperatures, filling closures and minimizing voids. Resin 2123 meets high standards of protection and has been tested to IEC 60243 and VDE 0303-4.

3M Scotchcast Resin 2123D 电缆修补胶

1. 产品介绍

3MTM ScotchcastTM2123 防潮绝缘树脂是双组分的聚，用于连接件的防潮绝缘保护，其特点是将其打开后仍可重复使用，且固化后比较柔软。

2123 防潮绝缘树脂也可以用作1kV 以下电缆中间接头的主绝缘，可满足电缆线芯温度为90℃情况下长期运行和130℃短时过载运行。

2123 防潮绝缘树脂 具有良好的防潮性能和很好的流动性。在温度不高的情况下，该产品很容易自流平，填充空袭而减少气泡产生。

2.产品特点

l 与大多数现代电缆护套的可靠粘结

l 与自身的良好粘结

l 方便打开，可重复使用

l 一个袋子中将两组分隔离包装，混合和使用方便

l 优异的多功能防潮密封

l 弹性及流动性好

l 颜色为透明
